Vulcan 4-Module Apartment Video Door Entry System Bespoke

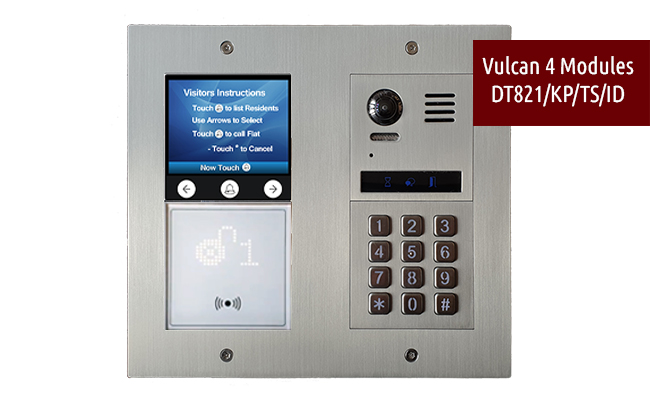

Vulcan Video Door Station 4-modules with Mechanical Keypad, Key fob Reader Dot Matrix and Touchscreen Modules Model DT821KP/TS/ID2x2

• Finish: Stainless Steel • Dimensions: W255 x H232 x D45mm • Mounting way: Flush mount or Surface mount with rain cover • Physical buttons keypad with blue background light • Touchscreen 3.5-inch TFT Module with scrolling information and Name-list to call the flats; or can be customized to your needs, such as the property address or similar • Dot Matrix display with built-in Proximity Key Fob Reader • 3 Tone Options: Silent, Ringtone, Voice Ennunciation • Connects directly to an electric or electro-magnetic lock • Camera: Colour CMOS, 2.0 Mega pixel, wide angle 170-degree fisheye • Night vision with 6 white light LED



Wi-Fi/IP 7-inch Image Recording. Receive video call to your smart phone. Full Duplex (2-way talking). Handsfree. Colour video

• Finish: White with light grey frame • Dimensions: W174 x H160 x D22mm • Mounting type: surface mount or desk mount with additional mounting available to purchase • Resolution: 800 x 480 pixels • 22 ringtones • Image Recording:records 100 pictures on internal memory. 10 sec video clips if SD card max 32GB is installed • Pan, Tilt and Zoom functions • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Two types of Intercom function: to a specific room, to all rooms at once between multiple monitors installed • Divert calls to your smart phone or tablet via WIFI or IP. Apps are available

DT471 7-inch Touch screen. Full Duplex (2-way talking). Handsfree. Colour video

• Finish: White with light grey frame • Dimensions: W 174 x H 160 x D 22mm • Mounting type: surface mount or desk mount with additional mounting available to purchase • Resolution: 800 x 480 pixels • 12 ringtones • Pan, Tilt and Zoom functions • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Intercom function among all monitors in one flat/apartment

Alecto 7-inch digital low profile. Full Duplex (2-way talking). Handsfree. Colour video. Image/Video clip Recording. Voicemail Function

• Finish: Brushed Steel • Dimensions: W 212 x H 139 x D 15mm • Mounting type: surface mount • Resolution: 800 x 480 pixels • 15 ringtones • Image Recording: 118 pictures on internal memory. Video clips if SD card up to 32GB is installed • Voicemail function: if nobody answer the call within 30 sec, your visitor will be asked to leave a voicemail • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Three types of Intercom function: to a specific room, to all rooms at once or Broadcast Intercom between multiple monitors installed • SMS function between multiple monitors installed

Aura 7-inch Image Recording. Full Duplex (2-way talking). Handsfree. Colour video

• Finish: Acrylic glass White • Dimensions: W 225 x H 131 x D 18mm • Mounting type: surface mount • Resolution: 800 x 480 pixels • 15 ringtones • Image Recording: over 1000 of pictures on internal memory. Video clips if SD card up to 32GB is installed • Night Ring function • Clock and calendar • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Three types of Intercom function: to a specific room, to all rooms at once or Broadcast Intercom

Cronus 7-inch digital Touch screen. Full Duplex (2-way talking). Handsfree. Colour video

• Finish: White • Dimensions: W 225 x H 125 x D 23mm • Mounting type: surface mount • Resolution: 800 x 480 pixels • 15 ringtones • Photo frame function • Night Ring function • Clock and calendar • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Two types of Intercom function: to a specific room or to all rooms at once

Avro 4.3-inch digital screen. Full Duplex (2-way talking). Handsfree. Colour video

• Finish: Acrylic glass ice white • Dimensions: W 137 x H 137 x D 17mm • Mounting type: surface mount • Resolution: 480x3x272 pixel • 12 ringtones • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Intercom function among all monitors in one flat/apartment

DF7 7-inch digital screen. Full Duplex (2-way talking). Handsfree. Colour video

• Finish: Acrylic glass piano black or white • Dimensions: W186 x H139 x D13.8mm • Mounting type: surface mount • 12 ringtones • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Intercom function among all monitors in one flat/apartment

DF4 4.3-inch digital screen. Full Duplex (2-way talking). Handsfree. Colour video

• Finish: Acrylic glass piano black or white • Dimensions: W138 x H138 x D13.8mm • Mounting type: surface mount • 12 ringtones • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Intercom function among all monitors in one flat/apartment



PC7 and PC7H Combo Intelligent power supply

• Power supply PC7 for up to 32 x usual monitors, 12 x WiFi/IP monitors • Power supply PC7H for up to 32 x usual monitors, 18 x WiFi/IP monitors • Multi protection: short circuit, overload, over voltage • Input Voltage: 100~240V 1.5A • Rated Output Voltage: DC 28V+/-2V • Rated Output Current: 2-2.5A



• DBC-4 Add 1 X DBC-4 for every 4 x video monitors • Add separate DBC-4 to connect up to 4 monitors inside one flat

• DBC-4 To connect up to 4 Door stations per system. Add 1 x DBC-4

• IPG Gateway Interface To connect system to the Internet for video call divert. Only Avro and DT471 video monitors have QR code to scan via App

• RLC Lock Interface - you will need one of these if you planning to connect more than one electric lock (default), i.e. pedestrian gate and vehicle gate

• Door Strikes and Bolt Locks - electric locks which you can open via your monitor for ease and security

• Exit Buttons - You will need one of these inside your property if you have an electric lock

• Proximity Key Fobs and Proximity Cards - to open lock with keyfob



This system transmits video and audio through the power cable. No Polarity connection

• Recommended cables: Unshielded twisted pair, power flex multi-cores, speaker cable, CAT5/CAT6

• Minimum requirements 0.5mm cable up to 2mm (depends on distance)

• Working distances up to 150 metres between doorbell camera and power supply and another 150m between power supply and monitors



• Vulcan DT821 Door Station Manual
• DX471 WIFI Monitor Manual
• Alecto Monitor Manual
• Aura Monitor Manual
• Avro Monitor Manual
• DT471 Monitor Manual
• DBC-4 Distributor Manual
• PC7 Power Supply Manual
• IPG Gateway Interface Manual
• RLC Lock Control Manual
