Victor IX850 POE Apartment Video Door Entry System Bespoke

IX-471 Touch screen 7-inch. Full Duplex (2-way talking). Handsfree. Colour video. This monitor requires hardwired connection to the router and public broadband to use call divert with App function

• Finish: White with light grey frame • Dimensions: W174 x H160 x D22mm • Mounting type: surface mount • Resolution: 800 x 480 pixels • 12 ringtones • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Pictures of visitors stored • Intercom function

IX-471S with built-in WiFi Touch screen 7-inch. Full Duplex (2-way talking). Handsfree. Colour video. This monitor connects to the broadband of each apartment via WiFi to use call divert with App function

• Finish: White with light grey frame • Dimensions: W174 x H160 x D22mm • Mounting type: surface mount • High Resolution: 1024 x 600 pixels • 12 ringtones • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Pictures and video of visitors stored • Intercom function

IX-470 with built-in WiFi Touch screen 7-inch. Horisontal or vertical installation. Acrylic glass finish. Full Duplex (2-way talking). Handsfree. Colour video. This monitor connects to the broadband of each apartment via WiFi to use call divert with App function

• Finish: White • Dimensions: W225 x H131 x D18mm • Mounting type: surface mount • High Resolution: 1024 x 600 pixels • 12 ringtones • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Pictures and video of visitors stored • Intercom function

IX-482SE Touch screen wifi 7-inch. Full Duplex (2-way talking). Acrylic glass finish. Handsfree. Colour video. This monitor requires hardwired connection to the router and public broadband to use call divert with App function

• Finish: Acrylic glass finish white • Dimensions: W159 x H185 x D18.5mm • Mounting type: surface mount • Resolution: 1024 x 600 pixels • 12 ringtones • Pan,Tilt and Zoom functions • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Pictures and video of visitors stored • Intercom function

IX-482 Touch screen wifi 7-inch. Full Duplex (2-way talking). Acrylic glass finish. Handsfree. Colour video. This monitor connects to the broadband of each apartment via WiFi to use call divert with App function

• Finish: Acrylic glass finish white • Dimensions: W159 x H185 x D18.5mm • Mounting type: surface mount • Resolution: 1024 x 600 pixels • 12 ringtones • Pan,Tilt and Zoom functions • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Pictures and video of visitors stored • Intercom function

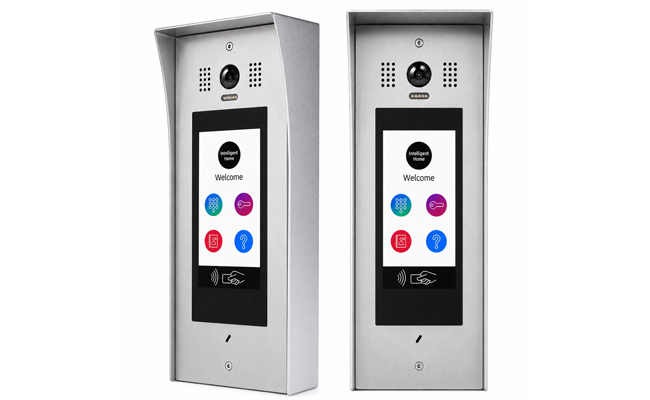

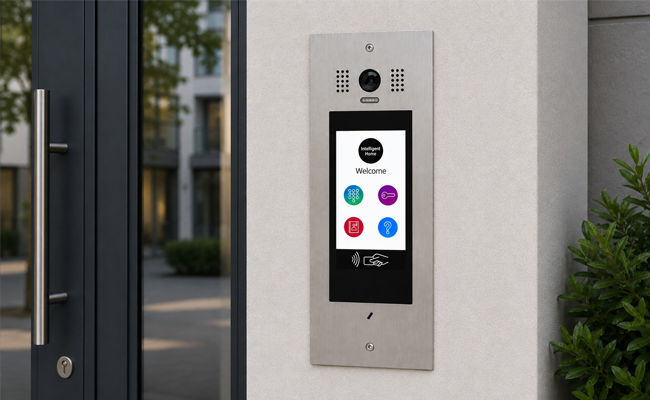

IX850 POE Video Door Station with Proximity Reader and Keypad

• Finish: Stainless Steel • Dimensions: W133 x H316 x D45mm • Mounting way: Flush mount or Surface mount with rain cover • 5-inch TFT screen with touch screen operation • Built-in Proximity Key Fob Reader and Keypad • 3 Tone Options: Silent, Ringtone, Voice Ennunciation • Connects directly to an electric or electro-magnetic lock • Camera: 1/3.7" Ultra Sense, ISP with 77dB WDR wide angle 170-degree fisheye • Night vision, min illumination 5 lux • IP65 • Working distance up to 100m



See here: IX-850 Wiring Diagram



This system transmits video and audio through the CAT5/CAT6 cable with RG45 connector. You will need additionally appropriate number of ports unmanaged POE switch IEEE 802.3af Class 0, Standard 48V-52V protocol PD

• Working distances up to 100 metres between door station and POE switch and another 100m between POE switch and monitors



For iPhone IOS search Apple store for VDP Connect

For Android click here: VDP Connect



Victor IX-850 Door Station Manual

IX-470 Monitor Manual

IX-471 Monitor Manual

IX-482 Monitor Manual

IX-471S Monitor Manual
