Dahua IP Video Door Intercom System Surface Mount Steel Door Station

Kit Includes

• 1 x White Image Recording 7-inch video monitor

• 1 x Doorbell Camera, Surface mount

• 1 x Power supply

• 1 x PoE LAN Switch

White 7-inch digital low profile. Full Duplex (2-way talking). Handsfree. Colour video. Touch Creen

• Finish: Acrylic glass, ice white • Dimensions: W 200 x H 126 x D 22mm • Mounting type: surface mount • Resolution: 800 x 480 pixels • Omni directional mic and built in speaker • Side function keys (emergency, protection, talk, monitoring, unlock) • Full Colour GUI for set-up and operation • Intercom function in multiple monitors system. Maximum 6 x video monitors can be connected • Connect up to 21 IP CCTV Cameras • Built in SD Card Storage up to 32MB, video record and picture snapshot • Mobile phone support with push notification • 8 Channel Alarm Input with arm/disarm function and push notification • Network Connection with PoE support through Dahua switch

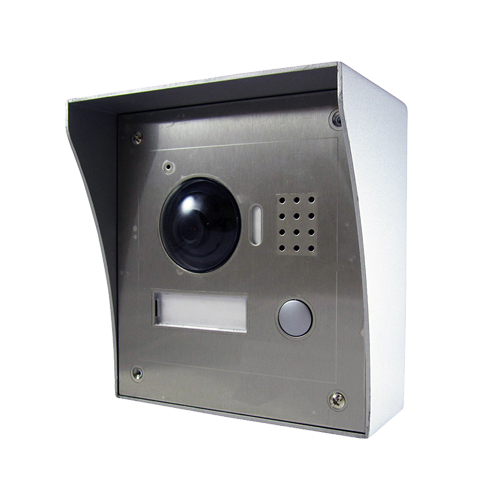

Stainless Steel Surface Mount with rain cover

• Finish: Stainless Steel • Dimensions: W 130 x H 140 x D 33mm • Vandal Proof Design with security screws • 1.3MP High Definition Colour Camera • Night vision with LED light • 120-degree wide angle lens with manual adjustment • Omni directional mic and built in speaker • Call indoor monitor and management centre • Mobile phone support with push notification • Network Connection with PoE support through Dahua LAN switch

Dahua PoE LAN Switch 6-ports

• Proprietory PoE Switch for Dahua IP Video Door Entry • 6 Network Ports for transfer of signal and power • 24Vdc operation (PSU provided) • Compact Design with screw fixings

Switching Power supply

See here:

Connection Diagram

gDMSS HD Lite
