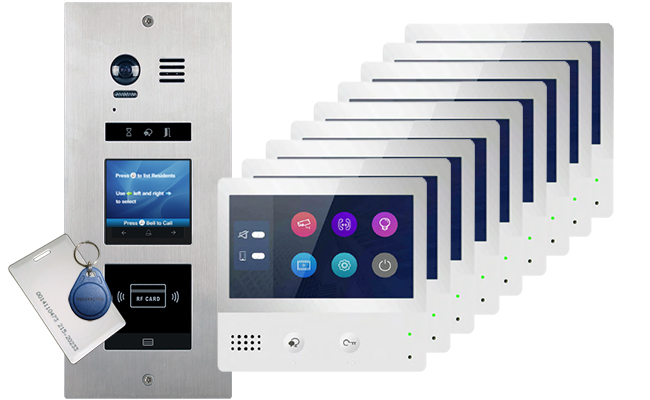

9-Flat Door Entry Vosper Card Reader DT471 Monitors

DT471 7-inch Touch screen. Full Duplex (2-way talking). Handsfree. Colour video

• Finish: White with light grey frame • Dimensions: W174 x H160 x D22mm • Mounting type: surface mount or desk mount with additional mounting available to purchase • Resolution: 800 x 480 pixels • 12 ringtones • Pan,Tilt and Zoom functions • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Intercom function among all monitors in one flat/apartment



Video Door Station Proximity Reader Model DMR21ID

• Finish: Stainless Steel • Dimensions: W133 x H316 x D46mm • Mounting way: Flush mount (wall box supplied) • Connects directly to an electric or electro-magnetic lock • Camera: ARS High Resolution 520 TV Lines • Viewing angle: 105-degree • Night vision • Built-in Proximity Reader to open the lock with Proximity ID Card



PC7 Combo Intelligent power supply

• One per system is required • Multi protection: short circuit, overload, over voltage • Input Voltage: 100~240Vac • Rated Output Voltage: DC 28V+/-2V • Rated Output Current: 1.5A



This system transmits video and audio through the power cable. No Polarity connection

• Recommended cables: Unshielded twisted pair, power flex multi-cores, speaker cable, CAT5/CAT6

• Minimum requirements 0.5mm cable up to 2mm (depends on distance)

• Working distances up to 150 metres between doorbell camera and power supply and another 150m between power supply and monitors



Vosper DMR21 Door Station Manual

DT471 Monitor Manual

DBC-4 Distributor Manual

PC7 Power Supply Manual
