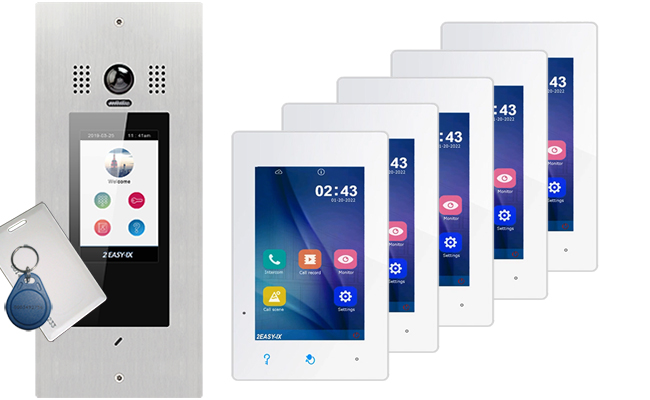

5-Apartment Video Door Entry System Victor POE with IX470 Monitors

IX850 POE Video Door Station with Proximity Reader and Keypad

• Finish: Stainless Steel • Dimensions: W133 x H316 x D45mm • Mounting way: Flush mount • 5-inch TFT screen with touch screen operation • Built-in Proximity Key Fob Reader and Keypad • 3 Tone Options: Silent, Ringtone, Voice Annunciation • Connects directly to an electric or electro-magnetic lock • Camera: 1/3.7" Ultra Sense, ISP with 77dB WDR wide angle 170-degree fisheye • Night vision, min illumination 5 lux • IP65 • Working distance up to 100m



IX-470 with built-in WiFi Touch screen 7-inch. Horisontal or vertical installation. Acrylic glass finish. Full Duplex (2-way talking). Handsfree. Colour video. This monitor connects to the broadband of each apartment via WiFi to use call divert with App function

• Finish: White • Dimensions: W 225 x H 131 x D 18mm • Mounting type: surface mount or desk mount with additional mounting available to purchase • High Resolution: 1024 x 600 pixels • 12 ringtones • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Pictures and video of visitors stored • Intercom function

See here: IX-850 Wiring Diagram



This system transmits video and audio through the CAT5/CAT6 cable with RG45 connector. You will need additionally at least 21-port unmanaged POE switch IEEE 802.3af Class 0, Standard 48V-52V protocol PD

• Working distances up to 100 metres between door station and POE switch and another 100m between POE switch and monitors



For iPhone IOS search Apple store for VDP Connect

For Android click here: VDP Connect



• Victor IX-850 Door Station Manual
• IX-470 Monitor Manual
