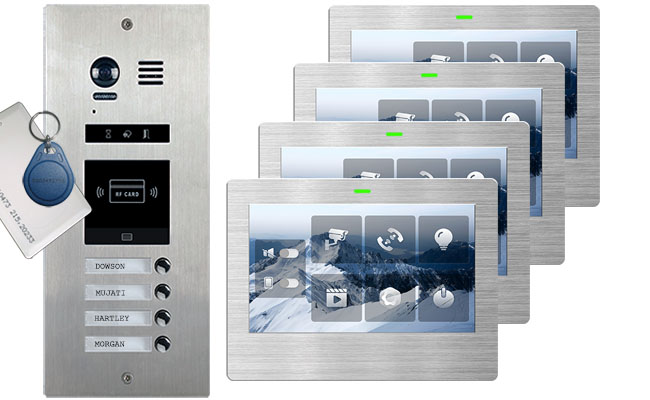

4-Flat Door Entry System Vosper Card Reader Direct Call DT473 Monitors

DMR21 4-Button Video Doorbell camera with built-in Keyfob Reader

• Finish: Stainless Steel 2mm • Dimensions: W133 x H316 x D46mm • Mounting: Flush mount • Built-in Proximity Reader • Comes with 2 x Master 'Add' and 'Delete' fobs and 16 x user cards • Camera: ARS high resolution 520TV Lines • Angle of view: 105-degree • Color LED work status indicators • Supports 2nd lock via RLC Lock Interface • Anti-tamper screw installation • Connects directly to an electric or electro-magnetic lock • Night vision



DT473 7-inch Touch screen. Full Duplex (2-way talking). Handsfree. Colour video

• Finish: Brushed Aluminium • Dimensions: W186 x H139 x D14mm • Mounting type: surface mount or desk mount with additional mounting available to purchase • Resolution: 800 x 480 pixels • 12 ringtones • Pan,Tilt and Zoom functions • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Intercom function among all monitors in one flat/apartment



PC9 Combo Intelligent power supply

• One per system is required • Multi protection: short circuit, overload, over voltage • Input Voltage: 100~240Vac • Rated Output Voltage: DC 28V+/-2V • Rated Output Current: 1.5A



This system transmits video and audio through the power cable. No Polarity connection

• Recommended cables: Unshielded twisted pair, power flex multi-cores, speaker cable, CAT5/CAT6

• Minimum requirements 0.5mm cable up to 2mm (depends on distance)

• Working distances up to 150 metres between doorbell camera and power supply and another 150m between power supply and monitors



• Vosper DMR21 Door Station Manual
• DT-473 Monitor Manual
• DBC4 Manual
• PC-9 PSU Manual
