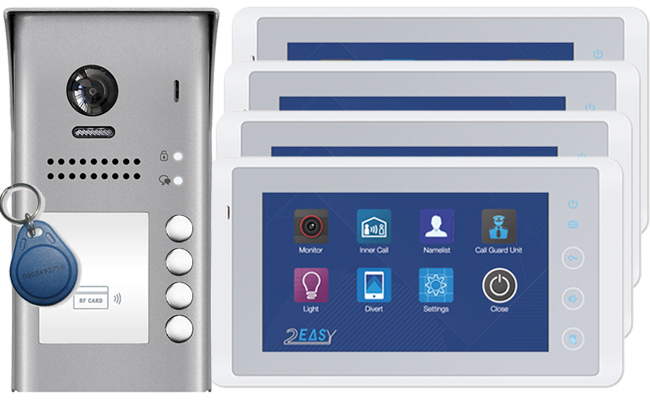

4-Flat Door Entry System Keyfob Reader with Cronus Touchscreen Monitors

Cronus 7-inch Touch screen. Full Duplex (2-way talking). Handsfree. Colour video

• Finish: White with light grey frame • Dimensions: W225 x H125 x D23mm • Mounting type: surface mount • Resolution: 800 x 480 pixels • 12 ringtones • Night Ring function • Clock and calendar • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Intercom function among all monitors in one flat/apartment



Model DT607 Proximity Reader Surface Mount

• 2 Button version for separate properties • Finish: Stainless Steel • Dimensions: H176 x W90 x D24mm • Mounting type: surface mount • Proximity Reader built-in. Comes with 4 x keyfobs • Camera: new generation HD image sensor 650 TV lines, wide angle 170-degree fisheye camera • Night vision with advanced Auto Sensor LED • 'Talk' and 'Unlock' Indicators • Pan & Tilt function • PIR connection port for motion detection function (optional) • Electric lock connection port



PC7 Combo Intelligent power supply

• One per system is required • Multi protection: short circuit, overload, over voltage • Input Voltage: 100~240V 1.5A • Rated Output Voltage: DC 28V+/-2V • Rated Output Current: 1.5A



This system transmits video and audio through the power cable. No Polarity connection

• Recommended cables: Unshielded twisted pair, power flex multi-cores, speaker cable, CAT5/CAT6

• Minimum requirements 0.5mm cable up to 2mm (depends on distance)

• Working distances up to 150 metres between doorbell camera and power supply and another 150m between power supply and monitors
