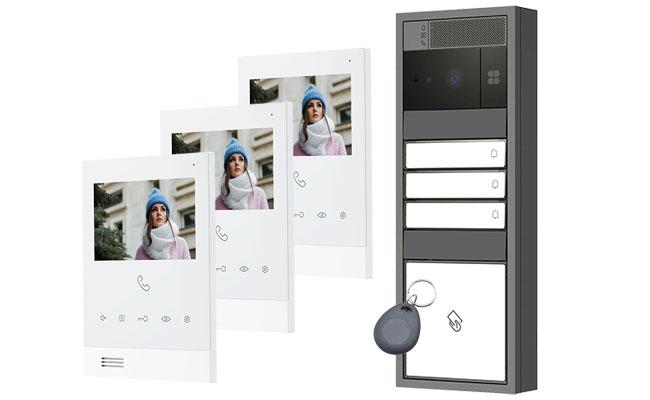

3-Flats Direct Call Keyfob Reader Video Door Entry System Mobile App

Valiant 3-Button Video Door Station with Proximity Reader

• Finish: Aluminium • Dimensions: W111 x H305 x D37mm • Mounting way: Surface mount • Physical buttons with blue background light • Voice Annunciation • Connects directly to up to 2 x electric or electro-magnetic locks • Camera: Colour 2.0 Mega pixel, wide angle 130-degree • Night vision with 6 white light LED • IP65 IK07 protection grade



Wi-Fi/IP 5-inch Image Recording Model. Receive video call to your smart phone. Full Duplex (2-way talking). Handsfree. Colour video

• Finish: White Acrylic Glass • Dimensions: W134 x H180 x D14.5mm • Mounting type: surface mount • Resolution: 800 x 480 pixels • 22 ringtones • Image Recording: stores 200 records on internal memory • Wallpaper options • Clock and calendar • 'Do Not Disturb' function • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Intercom function between residents • Divert calls to your smart phone or tablet via WIFI or IP. Apps are available



PC01 Combo Intelligent power supply

• One per system is required • Multi protection: short circuit, overload, over voltage • Input Voltage: 100~240V 1.5A • Rated Output Voltage: DC 28V+/-2V • Rated Output Current: 1.5A



This system transmits video and audio through the power cable. No Polarity connection

• Recommended cables: Unshielded twisted pair, power flex multi-cores, speaker cable, CAT5/CAT6

• Minimum requirements 0.5mm cable up to 2mm (depends on distance)

• Working distances up to 150 metres between doorbell camera and power supply and another 150m between power supply and monitors



For iPhone IOS search Apple store for Tuya Smart

For Android click here: Tuya Smart



• Doorbell Manual
• Video Monitor Manual
