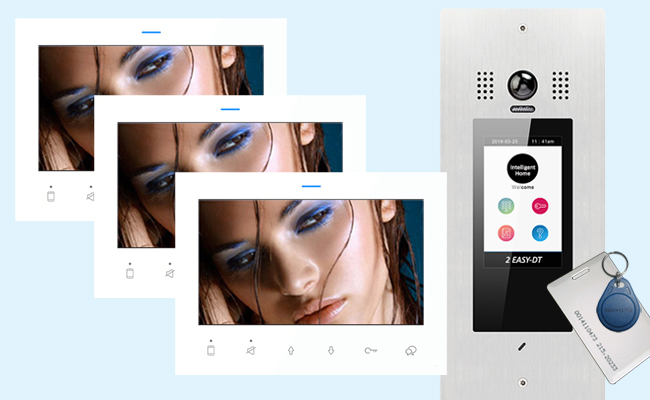

3-Flat Door Entry System Victor with DF7 White Monitors

DF7 7-inch digital screen. Full Duplex (2-way talking). Handsfree. Colour video

• Finish:Acrylic glass white • Dimensions: W186 x H139 x D13.8mm • Mounting type: surface mount • 12 ringtones • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Intercom function among all monitors in one flat/apartment

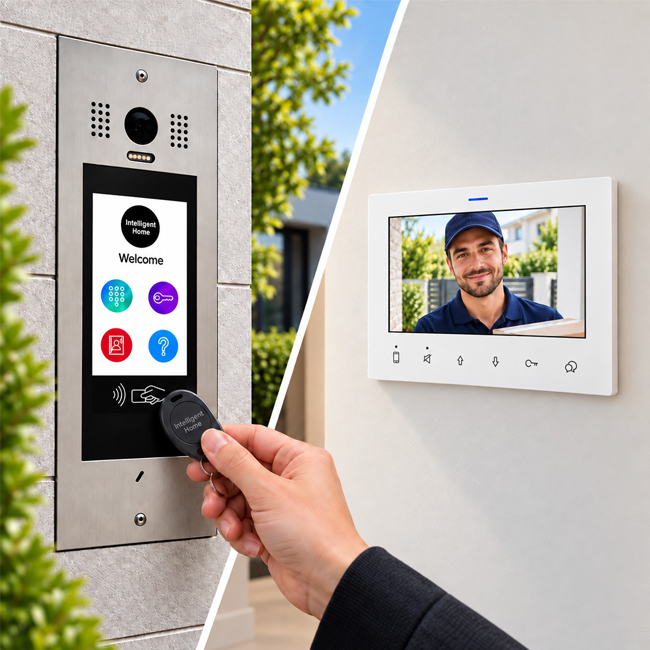

Victor Video Door Station Model DT821T5 with:

5-inch Touchscreen Module

• Finish: Stainless Steel • Dimensions: W132 x H315 x D45mm • Mounting way: Flush mount or Surface mount with rain cover • Touchscreen 5-inch TFT Module with built-in Keypad, Proximity Reader and Residents list • 3 Tone Options: Silent, Ringtone, Voice Ennunciation • Connects directly to an electric or electro-magnetic lock • Camera: Colour CMOS, 2.0 Mega pixel, wide angle 170-degree fisheye • Night vision with 6 white light LED • Weather Protection: IP65



PC7 Combo Intelligent power supply

• One per system is required • Multi protection: short circuit, overload, over voltage • Input Voltage: 100~240V 1.5A • Rated Output Voltage: DC 28V+/-2V • Rated Output Current: 1.5A



This system transmits video and audio through the power cable. No Polarity connection

• Recommended cables: Unshielded twisted pair, power flex multi-cores, speaker cable, CAT5/CAT6

• Minimum requirements 0.5mm cable up to 2mm (depends on distance)

• Working distances up to 150 metres between doorbell camera and power supply and another 150m between power supply and monitors



• Victor DT821T5 Door Station Manual
• DF7 Monitor Manual
• DBC4 Manual
• PC-7 PSU Manual
