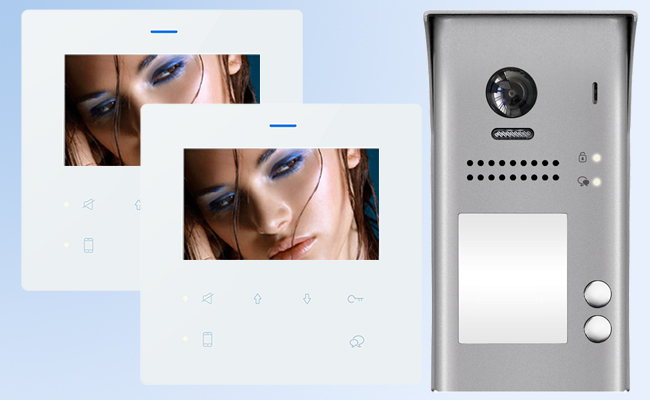

2-Flat Video Door Entry Kit with DF4 White Monitors

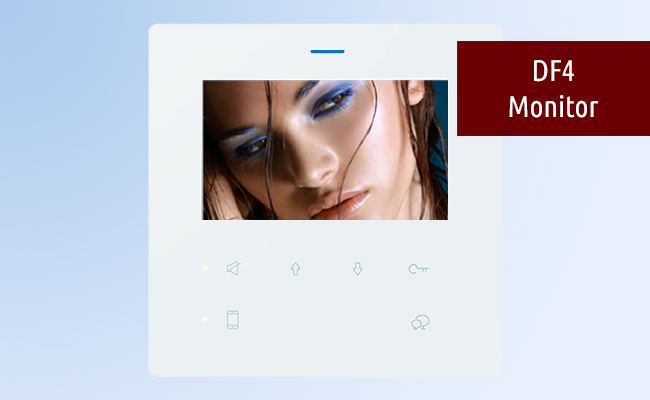

DF4 4-inch digital screen. Full Duplex (2-way talking). Handsfree. Colour video

• Finish:Acrylic glass ice white • Dimensions: W138 x H138 x D13.8mm • Mounting type: surface mount • 12 ringtones • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Intercom function among all monitors in one flat/apartment

Model DT607C Surface Mount

• 2-Button version for separate properties • Finish: Stainless Steel • Dimensions: H176 x W90 x D24mm • Mounting type: surface mount • Camera: new generation HD image sensor 650 TV lines, wide angle 105-degree camera • Night vision with advanced Auto Sensor LED • 'Talk' and 'Unlock' Indicators • PIR connection port for motion detection function (optional) • Electric lock connection port

PC4 Intelligent Combo Power Supply

• Input 100-240V, 50-60Hz, 1.5A • Output 26V

This system transmits video and audio through the power cable. No Polarity connection

• Recommended cables: Unshielded twisted pair, power flex multi-cores, speaker cable, CAT5/CAT6

• Minimum requirements 0.5mm cable up to 2mm (depends on distance)

• Working distances up to 150 metres between doorbell camera and power supply and another 150m between power supply and monitors

• DT607 Door Station Manual
• DF7 Monitor Manual
• DBC4 Manual
• PC-4 PSU Manual
