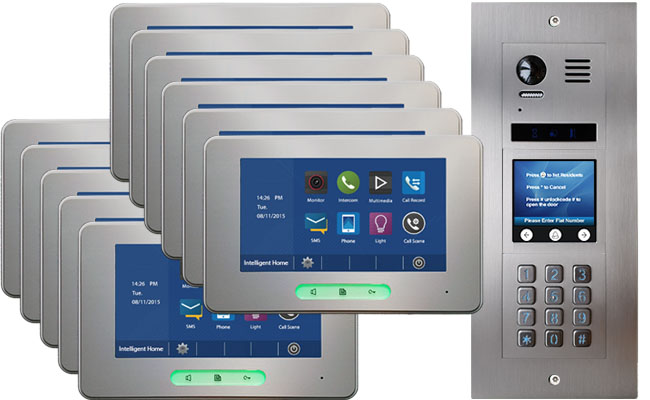

11-Flat Door Entry Vulcan Touchscreen and Keypad Alecto Monitors

ALECTO 7-inch digital low profile. Full Duplex (2-way talking). Handsfree. Colour video.Image/Video clip Recording. Voicemail Function

• Finish: Brushed Steel • Dimensions: W212 x H139 x D15mm • Mounting type: surface mount • Resolution: 800 x 480 pixels • 15 ringtones • Image Recording: 118 pictures on internal memory. Video clips if SD card up to 32GB is installed • Voicemail function: if nobody answer the call within 30 sec, your visitor will be asked to leave a voicemail • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Three types of Intercom function: to a specific room, to all rooms at once or Broadcast Intercom between multiple monitors installed • SMS function between multiple monitors installed



Vulcan Video Door Station Model DT821 with:

Touchscreen and Mechanical Keypad DT821T/KP

• Finish: Stainless Steel • Dimensions: W132 x H315 x D45mm • Mounting way: Flush mount or Surface mount with rain cover • Physical buttons keypad with blue background light • Touscreen 3.5-inch TFT Module with scrolling information and Namelist to call the flats • 3 Tone Options: Silent, Ringtone, Voice Annunciation • Connects directly to an electric or electro-magnetic lock • Camera: Colour CMOS, 2.0 Mega pixel, wide angle 170-degree fisheye • Night vision with 6 white light LED



PC7 Combo Intelligent power supply

• One per system is required • Multi protection: short circuit, overload, over voltage • Input Voltage: 100~240Vac • Rated Output Voltage: DC 28V+/-2V • Rated Output Current: 1.5A



This system transmits video and audio through the power cable. No Polarity connection

• Recommended cables: Unshielded twisted pair, power flex multi-cores, speaker cable, CAT5/CAT6

• Minimum requirements 0.5mm cable up to 2mm (depends on distance)

• Working distances up to 150 metres between doorbell camera and power supply and another 150m between power supply and monitors



Vulcan DT821 Door Station Manual

Alecto Monitor Manual

DBC-4 Distributor Manual

PC7 Power Supply Manual
