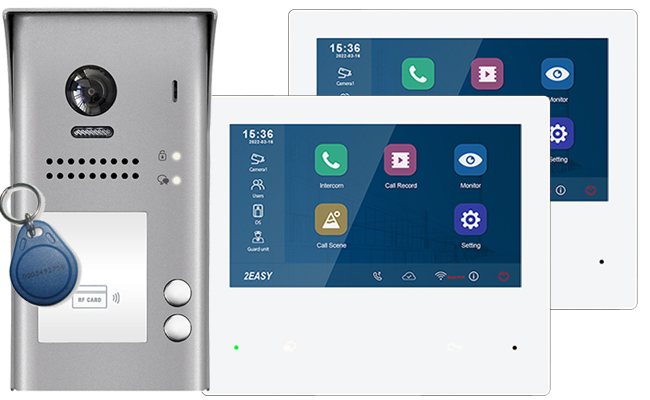

2-Flat Keyfob Reader Door Entry System Mobile App

Wi-Fi/IP 7-inch Image Recording Model DX482. Receive video call to your smart phone. Full Duplex (2-way talking). Handsfree. Colour video

• Finish: White Acrylic Glass • Dimensions: W185 x H159 x D18.5mm • Mounting type: surface mount • Resolution: 1024 x 600 pixels • 22 ringtones • Image Recording: records 10 videos 3 sec each on internal memory. 10 sec video clips if SD card (max 512GB) is installed • Clock and calendar • 'Do Not Disturb' function • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Two types of Intercom function: to a specific room, to all rooms at once between multiple monitors installed • Divert calls to your smart phone or tablet via WIFI or IP. Apps are available • Compatible with IP CCTV cameras which can be viewed on the monitor or the App



Model DT607 Proximity Reader Surface Mount

• 2-Button version for separate properties • Finish: Stainless Steel • Dimensions: H176 x W90 x D24mm • Mounting type: surface mount • Proximity Reader built-in. Comes with 5 x keyfobs • Camera: new generation HD image sensor 650 TV lines, wide angle 170-degree fisheye • Night vision with advanced Auto Sensor LED • 'Talk' and 'Unlock' Indicators • Pan & Tilt function • PIR connection port for motion detection function (optional) • Electric lock connection port



PC7 Combo Intelligent power supply

• One per system is required • Multi protection: short circuit, overload, over voltage • Input Voltage: 100~240V 1.5A • Rated Output Voltage: DC 28V+/-2V • Rated Output Current: 1.5A



This system transmits video and audio through the power cable. No Polarity connection

• Recommended cables:Unscreened twisted pair, power flex multi-cores, speaker cable

• Minimum requirements 0.5mm cable up to 2mm (depends on distance)

• Working distances up to 150 metres between doorbell camera and power supply and another 150m between power supply and monitors



For iPhone IOS search Apple store for VDP Connect

For Android click here: VDP Connect
